Flexible hoses for food & beverage applications
o Designed for food use and compliant with FDA, EU/UK & 3-A requirements.
o Free from animal derivatives and phthalates.
o Suitable for suction and delivery (lower vacuum rating on the crush-resistant option).
o Resistant to a wide range of CIP chemicals and 96% alcohol.
o Can be used in horizontal and vertical orientations.

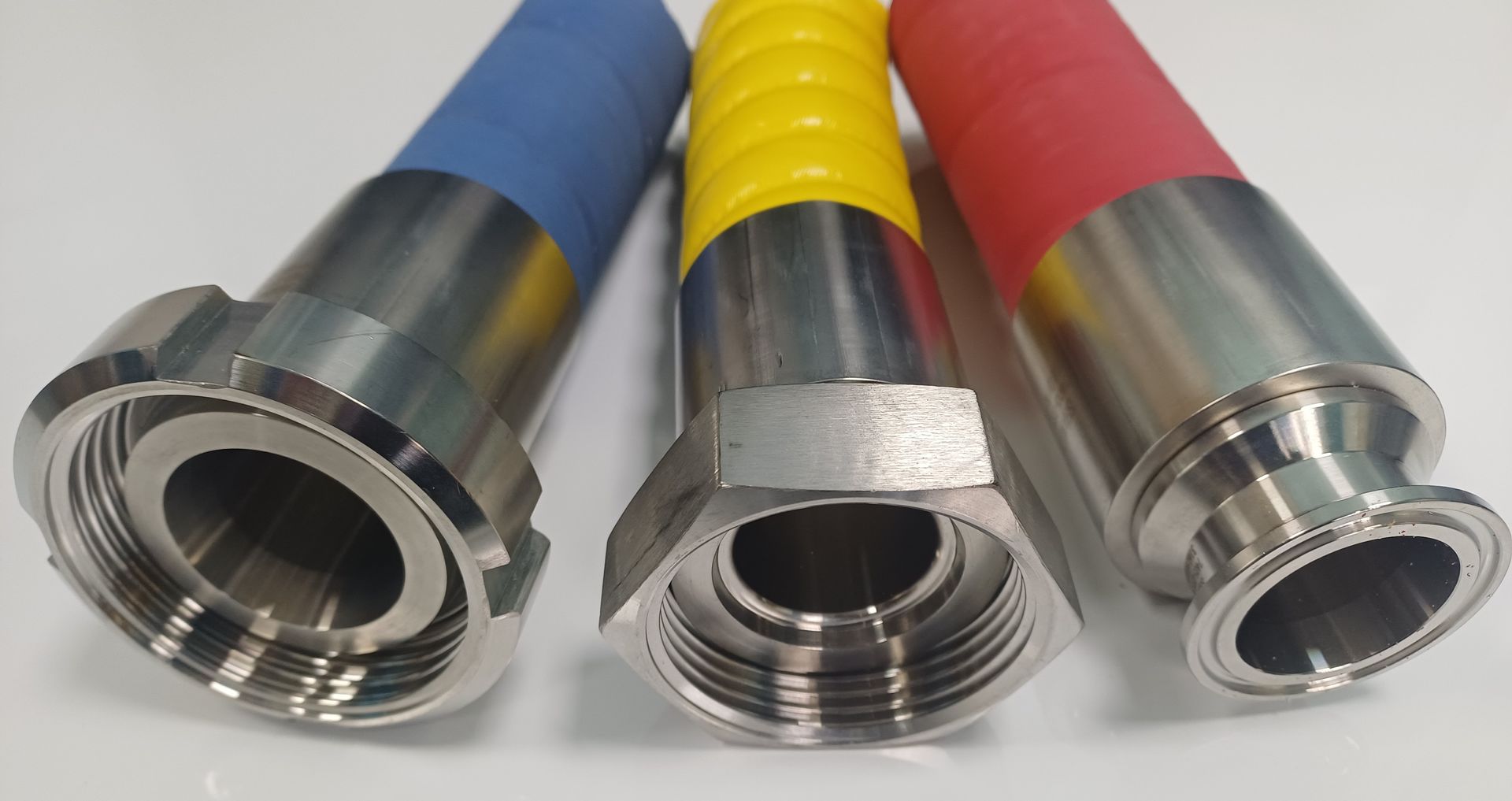

o DIN 11851, RJT and clamp ferrule swaged end fittings standard, other's on request.
o Bounce rings can be fitted if requested at time of order.
The FB Premium range of flexible hoses has been designed with performance and longevity in mind. The standard range comprises three specifications:
- FB Premium Slide (formerly FB Premium) for long-term general use, and now with a resilient low-friction outer coating to ease movement across the floor.
- FB Premium Lite where limited space is available.
- FB Premium crush-resistant where vehicle traffic is high.
All three specifications have smooth butyl (BIIR) liners and abrasion-, ozone- and weather-resistant outer covers. They can be used in the range -40 to 120 degrees Celsius (subject to compatibility with the fluid). Helical steel and/or synthetic cord plies are built into the hose walls as reinforcement, the crush-resistant option containing only the latter which allows the hose to regain its shape if driven over.
The following options are available as standard. If you have other requirements or require specific technical information, please contact info@integprotec.com.
| Inside diameter (mm) | Outside diameter (mm) | Working pressure (bar) | Test pressure (bar) | Vacuum rating (bar) | Minimum bend radius (mm) | Approximate weight (kg/m) | Maximum length (m) |
|---|---|---|---|---|---|---|---|
| FB Premium Slide | |||||||
| 25 | 37 | 10 | 30 | -0.9 | 75 | 0.7 | 40 |
| 38 | 51 | 10 | 30 | -0.9 | 120 | 1.2 | 40 |
| 51 | 66 | 10 | 30 | -0.9 | 150 | 1.9 | 40 |
| 63.5 | 79.5 | 10 | 30 | -0.9 | 195 | 2.4 | 40 |
| 76 | 92 | 10 | 30 | -0.9 | 230 | 3 | 40 |
| FB Premium Lite | |||||||
| 25 | 37 | 10 | 40 | -0.9 | 85 | 0.6 | 40 |
| 38 | 50 | 10 | 40 | -0.9 | 105 | 0.9 | 40 |
| 51 | 62 | 10 | 40 | -0.9 | 120 | 1.3 | 40 |
| 63.5 | 77 | 10 | 40 | -0.9 | 130 | 2 | 40 |
| 76 | 91 | 10 | 40 | -0.9 | 150 | 2.4 | 40 |
| FB Premium Crush resistant | |||||||
| 19 | 29 | 16 | 48 | -0.6 | 120 | 0.5 | 20 |
| 25 | 37 | 16 | 48 | -0.6 | 150 | 0.7 | 20 |
| 38 | 56 | 16 | 48 | -0.6 | 240 | 1.9 | 20 |
